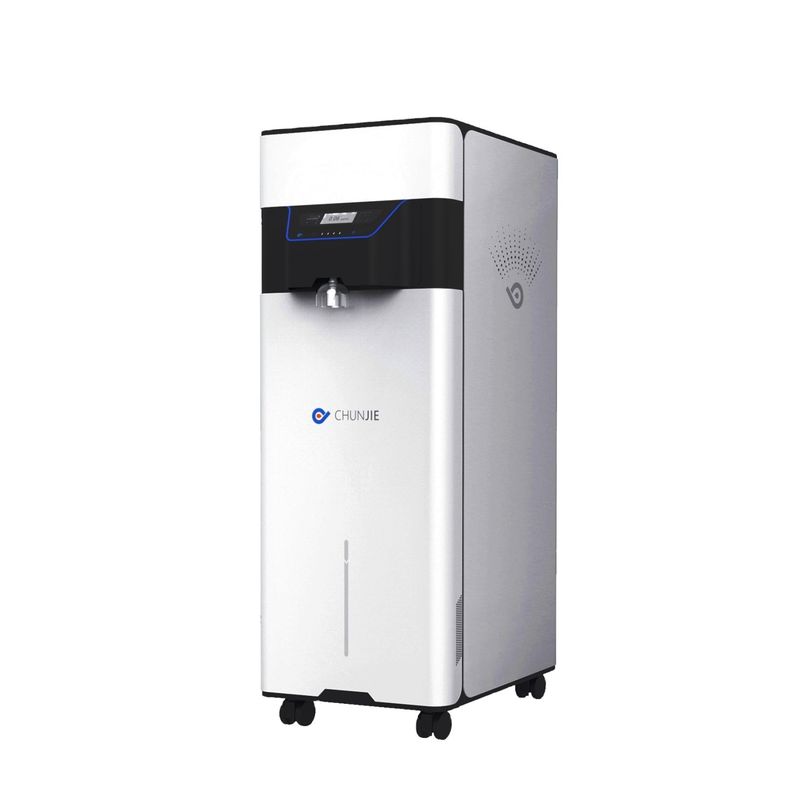

40L/H Ultrapure Lab Water Purification System Reverse Osmosis Machine 0.35Mpa

Product Details

Place of Origin: SiChuan, China

Brand Name: CHUNJIE

Certification: GB/T27922 CE ISO9001 ISO 13485 TUV

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Wooden box\carton

Delivery Time: Negotiable

Payment Terms: Western Union、ESCROW、PayPal、 T/T、L/C

Supply Ability: Very strong

Get Best Price
Contact Now
Specifications
Highlight:

40L/H Lab Water Purification System

,

40LPH Lab Water Purification System

,

Reverse Osmosis machine 0.35Mpa

Product Name:
40L/H Ultrapure Water Purification Reverse Osmosis System For Lab
Model:
CJ-SL-40 I II III
Productivity:
20-40lph
Production Capacity:
40L/H
Voltage:
AC220V 50-60Hz
Keywords:
Ultrapure Water Purification Reverse Osmosis System For Lab
Design:
Popular Design
Type:
Reverse Osmosis Filtration
Applicable Industries:
Hospital Clinical Laboratories
Provided:
Video Outgoing-inspection \Machinery Test Report
Product Name:
40L/H Ultrapure Water Purification Reverse Osmosis System For Lab
Model:
CJ-SL-40 I II III
Productivity:
20-40lph
Production Capacity:
40L/H
Voltage:
AC220V 50-60Hz
Keywords:
Ultrapure Water Purification Reverse Osmosis System For Lab
Design:
Popular Design
Type:
Reverse Osmosis Filtration
Applicable Industries:
Hospital Clinical Laboratories
Provided:
Video Outgoing-inspection \Machinery Test Report
Description
40L/H Ultrapure Lab Water Purification System Reverse Osmosis Machine 0.35Mpa

CJ-SL 40L/H Type Water Purification System

Popular Design 40L/H Ultrapure Water Purification Reverse Osmosis System For Lab

What is a laboratory ultrapure water system?

Laboratory ultrapure water system is a kind of laboratory water purification equipment. It is a water treatment device that removes all solid impurities, salt ions, bacteria and viruses in water through filtration, reverse osmosis, electrodialysis, ion exchanger, ultraviolet sterilization and other methods.
Laboratory ultrapure water equipment is widely used in medicine, electronics, chemical industry, biophysical and chemical laboratories and other industries. Laboratory ultrapure water machines can usually produce two specifications of pure water and ultrapure water.

Product performance

1. Simple appearance design; the whole machine adopts an integrated chassis, and the pure water tank and pressure tank are built in the chassis. It occupies a small space and is convenient for the overall layout and installation of the department.
2. Disposable consumables, portable replacement; pretreatment devices.
3. Silent medical wheel.
4. Built-in high-density polyethylene sterile water tank. The water tank is equipped with an overflow port and an anti-exhaust gas backflow device to prevent the water from being filled due to mechanical failure and ensure the normal operation of the department.
5. Imported reverse osmosis membrane.
6. Intelligent main control system; except for the host power supply, there are no electrical appliances or external power supplies outside the machine. All waterway interfaces are quick-plug, which facilitates inspection and maintenance and ensures safety. Waterways and circuits are partitioned.
7. The running status is visible.
8. Online monitoring conductivity meter.
9. It has both constant voltage and voltage-free output, and the constant voltage range is adjustable.
10. Ensure that water is given priority to the biochemical instrument.
11. Low water level prompt in water tank.
12. Intelligent flushing of reverse osmosis membrane.
13. Panel button water dispensing.
14. The water tank of the main engine is kept high from the ground to prevent siphon backflow, and the water tank is equipped with a large airflow prevention device.



Applicaiton

Our water purification system offers a broad range of pure and ultrapure water purification systems and services designed for scientists working in pharmaceutical, clinical, academic, research, and government laboratories - in both validated and non-validated environments.


Technical Parameters

1. Water production volume
40L (water temperature 25°C)
2. Product water quality
Meets CAP water standards
3. Available biochemical water pressure
0.05~0.35Mpa (adjustable).
4. Water inlet requirements
municipal tap water, conductivity ≤ 400μs/cm, pressure 0.15-0.35Mpa (conductivity > 400μs/cm requires a water softener, and a pressure reducing valve can be installed if the water pressure is too high)
5. Power supply requirements
AC 220V/50Hz
6. Environmental conditions
temperature 5~40℃, inlet water temperature 5~35℃
7. Reverse osmosis desalination rate
≥97.5%
Model
Purify Capacity
Water Quality
Pressure Mpa
Machine Size mm
Timed Loop
UV Disinfection
CJ-SL-20 I
20L/H
≤0.1us/cm
0-0.35
380x550x1100
No
No
CJ-SL-20 II
20L/H
≤0.1us/cm
0-0.35
380x550x1100
Yes
No
CJ-SL-20 III
20L/H
≤0.1us/cm
0-0.35
380x550x1100
Yes
Yes
CJ-SL-40 I
40L/H
≤0.1us/cm
0-0.35
380x550x1100
No
No
CJ-SL-40 II
40L/H
≤0.1us/cm
0-0.35
380x550x1100
Yes
No
CJ-SL-40 III
40L/H
≤0.1us/cm
0-0.35
380x550x1100
Yes
Yes

40L/H Ultrapure Lab Water Purification System Reverse Osmosis Machine 0.35Mpa 0

40L/H Ultrapure Lab Water Purification System Reverse Osmosis Machine 0.35Mpa 1

40L/H Ultrapure Lab Water Purification System Reverse Osmosis Machine 0.35Mpa 2
