Product Details
Place of Origin: SiChuan, China
Brand Name: CHUNJIE
Certification: GB/T27922 CE ISO9001 ISO 13485 TUV
Model Number: ROII
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden box\carton
Delivery Time: Negotiable
Payment Terms: Western Union、ESCROW、PayPal、 T/T、L/C
Supply Ability: Very strong
Product Name: |
CJ-ROII (1500-3000) Hemodialysis RO System |
Instrument Classification: |
Class II |
Endotoxin: |
<0.125Eu/ml |
Water Flow: |
1500-3000L/H |
Total Bacterial Count: |
<50cfu/ml |
Power Frequency: |
50Hz |
Input Voltage: |
AC380V |
Product Water Quality: |
AAMI/ASAIO Hemodialysis Water Standards |
System Emptying Rate: |
≥99%, No Dead Space |
Port: |
Shanghai Port |
Warranty: |
1 Year |
Product Name: |
CJ-ROII (1500-3000) Hemodialysis RO System |
Instrument Classification: |
Class II |
Endotoxin: |
<0.125Eu/ml |
Water Flow: |
1500-3000L/H |
Total Bacterial Count: |
<50cfu/ml |
Power Frequency: |
50Hz |
Input Voltage: |
AC380V |
Product Water Quality: |
AAMI/ASAIO Hemodialysis Water Standards |
System Emptying Rate: |
≥99%, No Dead Space |
Port: |
Shanghai Port |
Warranty: |
1 Year |

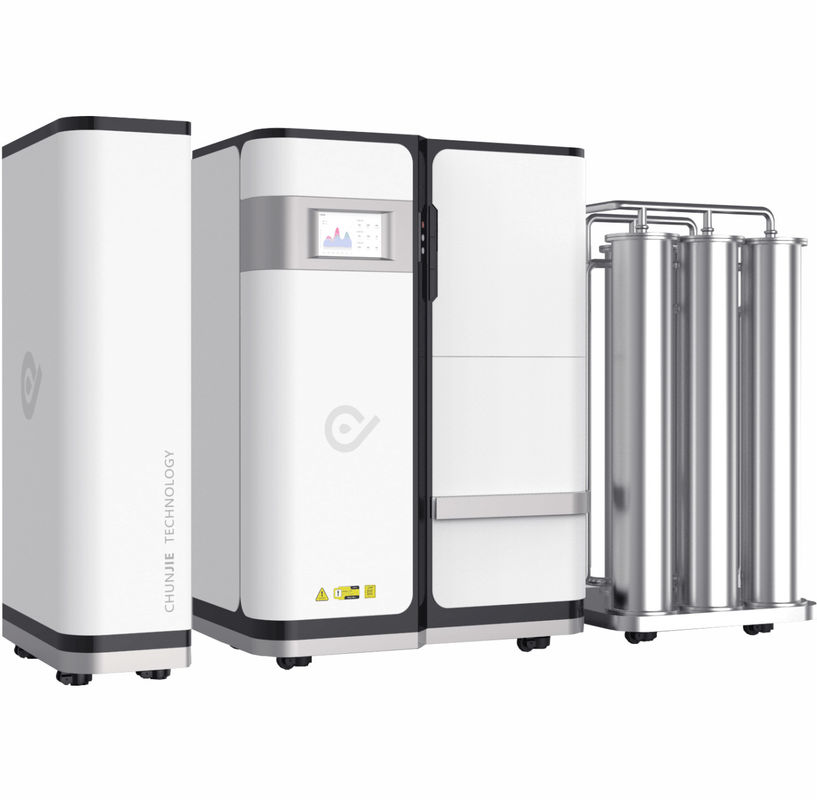

CJ-ROII (1500-3000) hemodialysis dialysis water treatment system
The hemodialysis dialysis water treatment system mainly processes drinking water to turn it into reverse osmosis water. Hemodialysis water treatment equipment is composed of multiple machines, including sand tanks, activated carbon tanks and resin tanks, reverse osmosis machines, and water supply pipes. Therefore, pure water equipment technology must meet national standards to ensure the stable operation of the pure water equipment in the hemodialysis machine to the greatest extent, and ensure that the water flowing into the patient's body is strictly treated reverse osmosis water to ensure that the patient's condition is effectively treated. During treatment, patients should be prevented from experiencing other related complications or adverse reactions.
▶PLC programmable intelligent control program, the entire system operates sensors to monitor all parameters, and the display screen displays digitally, such as water production volume, water inlet volume, desalination rate, etc.
▶Built-in raw water online total chlorine detection system, automatic alarm when residual chlorine exceeds the standard, ensuring quality and safety.
▶All pipelines are made of 316 sanitary stainless steel, and the 3D dead space pipeline design can more effectively control the growth of microorganisms.
▶The dual-channel water supply mode automatically switches to another level of water production or water supply when a failure occurs to achieve uninterrupted dialysis.
▶One-touch reverse osmosis membrane and pure water pipeline thermal disinfection system, safe, efficient, energy-saving and environmentally friendly.
▶Imported PE-Xa pipe, large circulation + small circulation water supply mode with no dead ends, supports chemical and thermal disinfection.
▶Fault self-diagnosis and troubleshooting help functions and multiple emergency plans to ensure the normal operation of the equipment.
Product water quality | complies with YY0572-2015 industry mandatory standards and American AAMI/ASAIO hemodialysis water standards |
---|---|
Product model | CJ-ROII (1500-3000) |
Water production | 1500-3000L/H |
Water inlet requirements | Water quality complies with GB5749 "Hygienic Standards for Drinking Water" |
Product water quality | Complies with YY0572-2015 industry mandatory standards and American AAMI/ASAIO hemodialysis water standards. |
Total number of colonies | <50cfu/ml |
Endotoxin | <0.125Eu/ml |
Power supply | AC380V, three-phase five-wire system, reliable grounding |
Power frequency | 50Hz |
System emptying rate | ≥99%, no dead space |
Applicable number of beds | 20 beds/30 beds/50 beds/50-100 beds |
Model | Water Production (L/h25℃) |
Voltage Power (KW) |
Operating Pressure (MPa) |
Host Size (mm) |
---|---|---|---|---|
CJ-ROII-1000 | ≥1000 | AC380/6.0 | 0.8-1.35 | 900×1700×2300 |
CJ-ROII-1500 | ≥1500 | AC380/8.0 | 0.8-1.35 | 900×1700×2300 |
CJ-ROII-2500 | ≥2500 | AC380/10.0 | 0.8-1.35 | 900×1700×2300 |
CJ-ROII-3000 | ≥3000 | AC380/12.5 | 0.8-1.35 | 900×1700×2300 |
