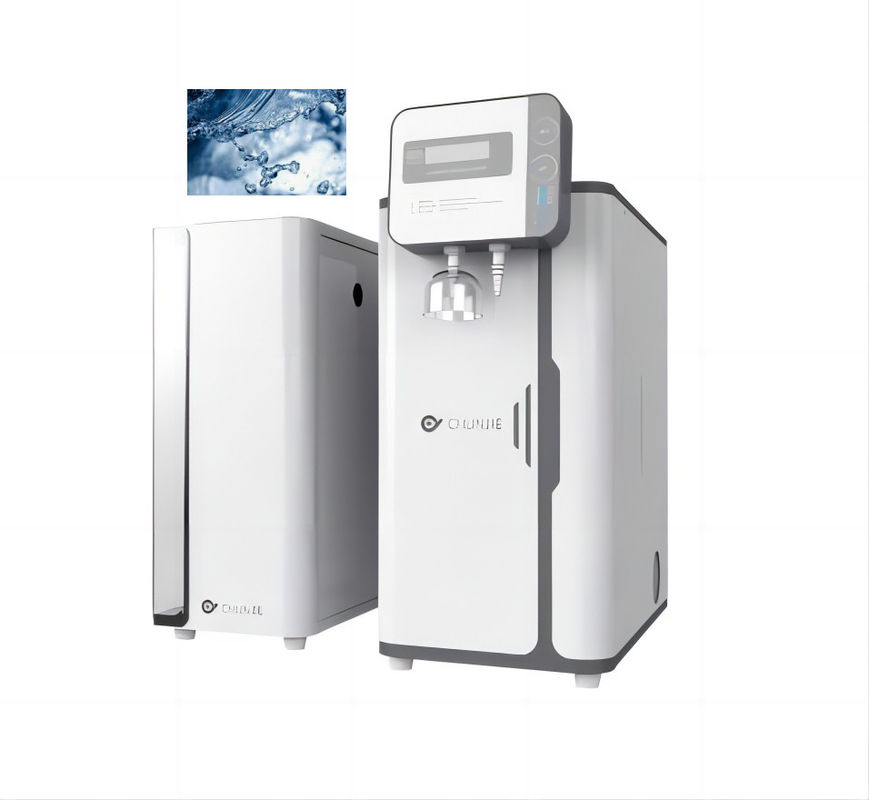

AC220V 50Hz Ultrapure Lab Water System Laboratory Water Purification Machine

Product Details

Model Number: CI-LTL

Payment & Shipping Terms

Get Best Price
Contact Now
Specifications
Highlight:

AC220V ultrapure lab water system

,

50Hz ultrapure lab water system

,

laboratory water purification Machine

Keywords:
Ultrapure Water System For Laboratory
Keywords:
Ultrapure Water System For Laboratory
Description
AC220V 50Hz Ultrapure Lab Water System Laboratory Water Purification Machine

Laboratory pure water machine



Advantages of laboratory pure water machine
1. The incoming water is city tap water or groundwater, with online water pressure monitoring function
2. Dual-purpose machine, capable of producing RO pure water and UP ultrapure water at the same time
3. Adopt reverse osmosis seawater desalination process to meet the needs of high salt water areas
4. UP ultrapure water resistivity online monitoring/water temperature online monitoring
5. Online monitoring of conductivity of RO pure water/online monitoring of water temperature
6. Flow monitoring consumables replacement cycle, LCD screen displays replacement information in Chinese
7. RS422 computer monitoring software system (optional)
8. One-click operation using UP-PLC intelligent control system



Microcontroller automatic control, touch keyboard operation

(1) Automatic flushing of RO reverse osmosis column/UF ultrafiltration column/UP ultra purification column (interval time 1~99 hours, flushing time 1~99 seconds)

(2) RO pure water exceeds the standard discharge setting (5~99US/cm, if it is greater than the set value, RO pure water will be discharged and will not enter the pure water tank);

(3) UP ultrapure water system cycle setting (30~180 seconds, which can maintain the best water quality of the output UP ultrapure water);

(4) Quantitative water inlet setting (1~99L);

(5) Qualitative water intake setting (0~18M.cm);

(6) Time setting (year/month/day/hour/minute);

(7) Language setting (Chinese/English);

(8) Automatic consumable replacement reminder;

Has historical database storage/query function

(1) Water intake time/water intake (year/month/day/hour/minute/liter);

(2) Water quality (RO conductivity/UP resistivity);

(3) Cumulative total water production (liters);

(4) Records of replacement of consumables for previous alarms.



Ultrapure water system automatic control and protection function

(1) When the water pressure is lower than 1.0BAR, the protection can be turned off automatically or manually

(2) Automatic protection of water shortage/low water pressure system (displays "System Water Shortage Protection")

(3) Automatic shutdown protection of the entire water tank system (graphic display of water tank water level and water level percentage)





The difference between pure water, purified water and ultrapure water

1. Pure water, also known as deionized water, refers to water that meets the sanitary standards for drinking water as raw water, and is produced through electrodialyzer method, ion exchanger method, reverse osmosis method, distillation method and other appropriate processing methods. Water that is sealed in a container and does not contain any additives. It is colorless, transparent, and can be drank directly. It can also be called pure water (chemically). It is often used in experiments and is made by distillation and other methods. , so it is also called distilled water. The space water and distilled water sold in the market are all pure water; but it is better to drink less pure water because it does not contain many minerals that the human body needs. Pure water does not conduct electricity easily and is an insulator. Use pure water when replenishing lead-acid batteries.
2. Purified water refers to water for medicinal use that is produced by distillation, ion exchange, reverse osmosis or other suitable methods, and does not contain any additives.
3. Ultrapure water refers to water with a resistivity of 10MΩ*cm (25℃). Commonly used in hospital laboratory departments, laboratories, hemodialysis rooms, sterilization supply rooms, dentistry, central water supply and other fields, and in the integrated circuit industry for cleaning semiconductor raw materials and utensils, preparation of photolithography masks and silicon wafers Water vapor source for oxidation, etc. In addition, ultrapure water is also used in the production of other solid-state electronic devices, thick film and thin film circuits, printed circuits, vacuum tubes, etc.



Technical indicators

Model CI-LTL ultrapure water system for laboratory
Water source City tap water or groundwater
Working power supply AC220V/50Hz (power 50-100W)
Host size

590×380×480mm on the table

Floor-standing Height980×Width530×Depth550mm

Noise <40 (dba)
Interception rate ≥90%
UP water quality Resistivity 18.25MΩ.cm
Terminal microfilter 0.22μm microporous membrane
Water tank equipment The desktop model comes standard with a 40-liter PE pure water tank, and the floor-standing model comes standard with an 80-liter PE pure water tank.

AC220V 50Hz Ultrapure Lab Water System Laboratory Water Purification Machine 0

AC220V 50Hz Ultrapure Lab Water System Laboratory Water Purification Machine 1
