Product Details
Model Number: CJ-LTL
Payment & Shipping Terms
Product Name: |
CJ-LTL Ultrapure Water Purification System |
Quality Of Produced Water: |
GB/T6682-2008 Laboratory Water Standards |
Water Production: |
20L/H (I/II) |
Application: |
HPLC |
Touch Control: |
LED LCD Panel Digital Display |
Disinfection: |
Automatic Cycle Disinfection Function |
Equipment Level: |
Ultrapure Water Level |
Water Quality: |
Type I & Type II |
Water Tank Storage: |
10L 15L |
Tap Water Quality Requirements: |
(TDS<300ppm) |
Product Name: |
CJ-LTL Ultrapure Water Purification System |
Quality Of Produced Water: |
GB/T6682-2008 Laboratory Water Standards |
Water Production: |
20L/H (I/II) |
Application: |
HPLC |
Touch Control: |
LED LCD Panel Digital Display |
Disinfection: |
Automatic Cycle Disinfection Function |
Equipment Level: |
Ultrapure Water Level |
Water Quality: |
Type I & Type II |
Water Tank Storage: |
10L 15L |
Tap Water Quality Requirements: |
(TDS<300ppm) |

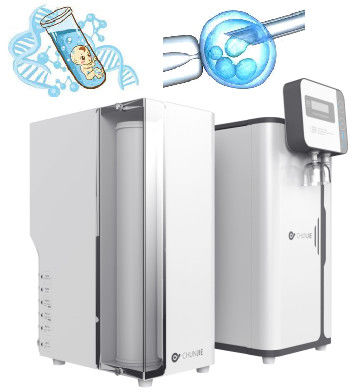

Laboratory ultrapure water machine CJ-LTL20II
Description:
The key role of ultrapure systems in HPLC applications is to provide high-purity water for preparing solutions, washing samples, and preparing standards to ensure the precision, reliability, and accuracy of HPLC analysis.
Usage:
CHUNJIE ultrapure water machines are widely used in HPLC (high performance liquid chromatography) applications. The following are some common HPLC application fields:
Performance configuration requirements
1. Split design, compact size, reducing the desktop area, the inlet water source is tap water, and two types of water quality can be prepared at the same time, pure water and ultrapure water.
2. The water dispensing button adopts touch control and LED liquid crystal panel digital display.
3. On-line monitoring of effluent water quality, RO pure water conductivity and UP ultrapure water resistivity liquid time display, to understand the water quality in real time.
4. It has a pure water tank liquid level display and a percentage display of the remaining water consumption.
5. It has the function of constant water flow and consumable replacement reminder function.
6. The system has an automatic flushing function for the reverse osmosis membrane to avoid the growth of bacteria.
7. It has built-in UV automatic cycle disinfection function.
8. It has the functions of automatic fault detection and alarm protection.
9. The terminal needs to be equipped with a 0.22μm bacterial interception device.
Parameters:
Model | CJ-LTL20II Laboratory ultrapure water machine |
---|---|
The produced water quality | GB/T6682-2008 laboratory first-class water standard |
Working environment temperature | 10~35℃ |
room temperature, humidity | 30%-85 |
power supply | 220V (+10% or -10%), 50Hz (+1 or -1); |
main unit | ≤600*260*450mm |
pure water tank module | ≤490*200*360mm. |
Water inlet requirements | city tap water (TDS<200ppm) |
UP ultrapure water production capacity | 20L/H |
water tank storage | standard built-in 10-liter pressureless sterile water tank |
RO conductivity | <10μs/cm (25℃) |
UP resistivity | 18.2MΩ.cm @25℃ |
Microorganisms | 0.1cfu/ml |
particulate matter | (0.22μm) ≤ 1P/ml |
