Product Details
Place of Origin: SiChuan, China
Brand Name: CHUNJIE
Certification: GB/T27922 CE ISO9001 ISO 13485 TUV
Model Number: ROG
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden box\carton
Delivery Time: Negotiable
Payment Terms: Western Union、ESCROW、PayPal、 T/T、L/C
Supply Ability: Very strong
Features: |
Easy Push-button Operation |
Model: |
CJ-ROG (300-2000) Pure Water Equipment |
Productivity: |
1000L/Hour |
Production Capacity: |
1000L/H |
Resistivity: |
≤15us/cm |
Usage: |
CSSD Disinfection Supply Center |
Keywords: |
Ultra Pure Water Treatment Plant |
Customized: |
According To Customers' Water Needs |
Size: |
1500X700X1700mm、1750×750×1700mm |
Processing: |
Quartz Sand+Activated Carbon+Resin+RO+UV |
Service: |
OEM ODM |
Features: |
Easy Push-button Operation |
Model: |
CJ-ROG (300-2000) Pure Water Equipment |
Productivity: |
1000L/Hour |
Production Capacity: |
1000L/H |
Resistivity: |
≤15us/cm |
Usage: |
CSSD Disinfection Supply Center |
Keywords: |
Ultra Pure Water Treatment Plant |
Customized: |
According To Customers' Water Needs |
Size: |
1500X700X1700mm、1750×750×1700mm |
Processing: |
Quartz Sand+Activated Carbon+Resin+RO+UV |
Service: |
OEM ODM |

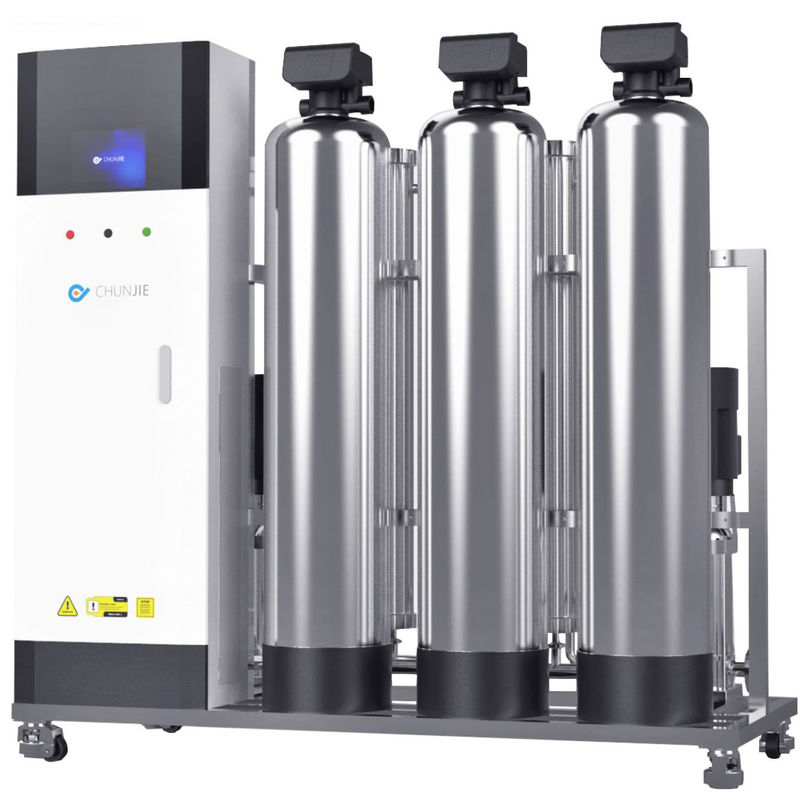

CJ-ROG Hospital Supply Room Pure Water Equipment
Why is ultrapure water equipment so necessary to use in hospital supply rooms?
The supply room is one of the most important departments in the hospital. It lays a solid foundation for the hospital's economic development and social benefits. It is also a key department for controlling hospital infections. Since the supply room is closest to the clinical departments, all sterile items used in the clinical departments are recycled, classified, packaged, and distributed to the clinical departments after sterilization. Therefore, the work quality of the supply room is directly related to hospital infection control, nursing work quality and patient life safety, and is equally important as clinical work. Cleaning and disinfecting items is the first step in infection control.
In the supply room, water treatment equipment is particularly important. It is mainly used to supply indoor water sources. It can be used in conjunction with various washing machines, cleaning trucks, and high-pressure sterilization equipment to flush various medical instruments, appliances, and equipment. The use of ultrapure water equipment is critical to the supply room. It can provide pure water that meets the WS310.1-2016 water quality standard of the Disinfection Supply Center. In the work of the supply room, the use of ultrapure water can ensure that the water source used is of high quality and does not contain any harmful substances, thereby effectively ensuring the quality of cleaning, disinfection and sterilization of items.
In short, the use of ultrapure water equipment in hospital supply rooms is necessary and important. It can provide high-quality water sources that meet standards to ensure the efficiency of supply room work and the reliability of item cleaning, thereby ensuring hospital infection control and patient safety.
Features:
▶PLC programmable intelligent control program with advanced functions such as fully automatic operation, maintenance, and flushing.
▶ LCD touch screen, real-time monitoring of water quality, water temperature, pressure, flow, etc., making the equipment intelligent.
▶ Built-in thermal online printer, automatically prints water quality and system parameter records (optional).
▶ High-quality craftsmanship, the main machine is all made of 304 stainless steel, and key components are imported originals (high-grade).
▶ Use imported PES material filter device to ensure that the water is truly sterile
▶ Built-in UV 304 sanitary stainless steel sterile water tank, cone emptying rate 100% (optional).
▶ The reverse osmosis membrane shell is designed with no dead ends to avoid bacterial growth and control microbial reproduction through water quality.
Parameters:
Product model | CJ-ROG (300-2000) |
Water production | 300-2000L / H |
Water storage | 200-1000L |
Input power | <6Kw |
Input voltage | AC380v |
Water inlet requirements | water quality meets GB5749 "Sanitary Standards for Drinking Water" |
Output adjustable pressure range | 0-0.4Mpa |
Total number of colonies | ≤10cfu / 100ml (sterile water) |
Water quality | 2μs / cm (two-stage reverse osmosis process) |
Water quality | 10μs / cm (single-stage reverse osmosis process) |
Different models specifications:
Product number | Water production (L/H25℃) |
Water quality(μs/cm) |
Voltage power (KW) |
Operating pressure (Mpa) |
Product Size (MM) |
---|---|---|---|---|---|
CJ-ROG-300 | 300L/H | ≤2 | 380V/3.0 | 0.8-1.35 | 1500*700*1700 |
CJ-ROG-600 | 600L/H | ≤2 | 380V/3.5 | 0.8-1.35 | 1500*700*1700 |
CJ-ROG-1000 | 1000L/H | ≤2 | 380V/3.8 | 0.8-1.35 | 1500*700*1700 |
CJ-ROG-1500 | 1500L/H | ≤2 | 380V/4.2 | 0.8-1.35 | 1750*750*1700 |
CJ-ROG-2000 | 2000L/H | ≤2 | 380V/5.2 | 0.8-1.35 | 1750*750*1700 |
Flow Process:
The filter element used in the pretreatment of ultrapure water equipment can effectively remove chlorine and organic pollutants in raw water, and the reverse osmosis membrane element can further remove fine impurity ions in the water. At the same time, it can also remove salt and some bacteria in the water. The final precision filtration is mainly to improve the water quality and inhibit the growth of bacteria in the water.
Sichuan Pure Science and Technology Co., Ltd. is a professional manufacturer of water treatment equipments, integrating R&D, sale and services.
We are experienced and committed to strict quality control and thoughtful customer service. Feel free to discuss your needs and ensure customer satisfaction. All products are manufactured using advanced equipment and quality control procedures to ensure high quality. With timely supply and reliable quality, the products sell well in the international market. If you are interested in the product or need to customize it, please contact us.
